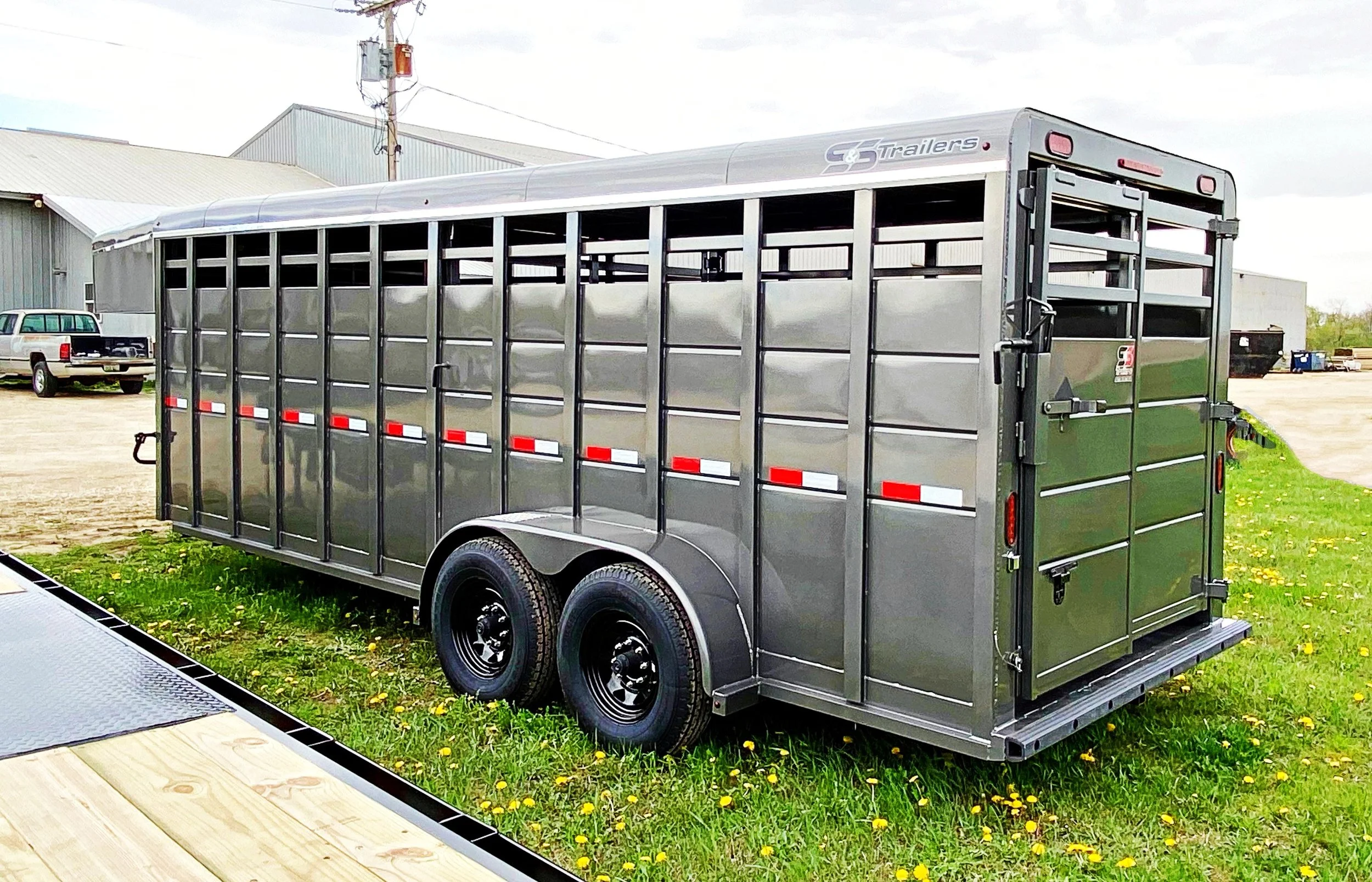

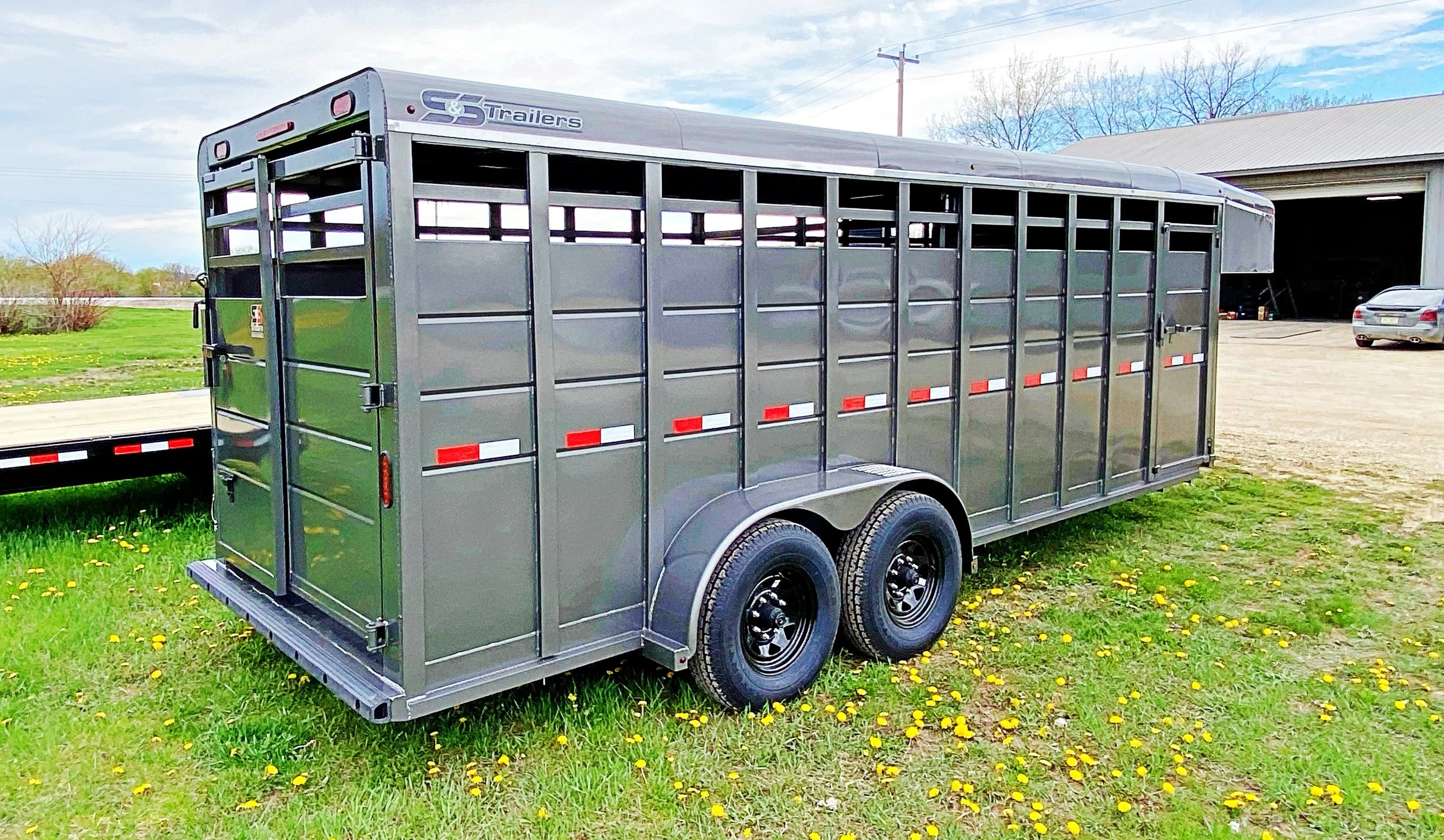

S&S Trailers Standard Gooseneck Stock Trailers 7K Axles- 22’

***WARRANTY- S&S has a 6 year structural and frame warranty on livestock trailers.

OUR GOOSE-NECK TRAILERS COME STANDARD WITH:

Length: 22’

Width: 6’8”

GVWR: 14,000 lbs.

Coupler: 2 5/16” Coupler

Axles: 7,000 lb. Axles with Slipper Springs

Suspension: Spring Leaf Style

Brakes: Electric Brakes

Tire: 235R16 10 Ply

Wheel: 16” Silver Spoke 8 Bolt

Frame: 3x3 Angle Iron (Steel)

Crossmembers: 2x3 Angle Iron (Steel)

Jack: Drop-leg Jack

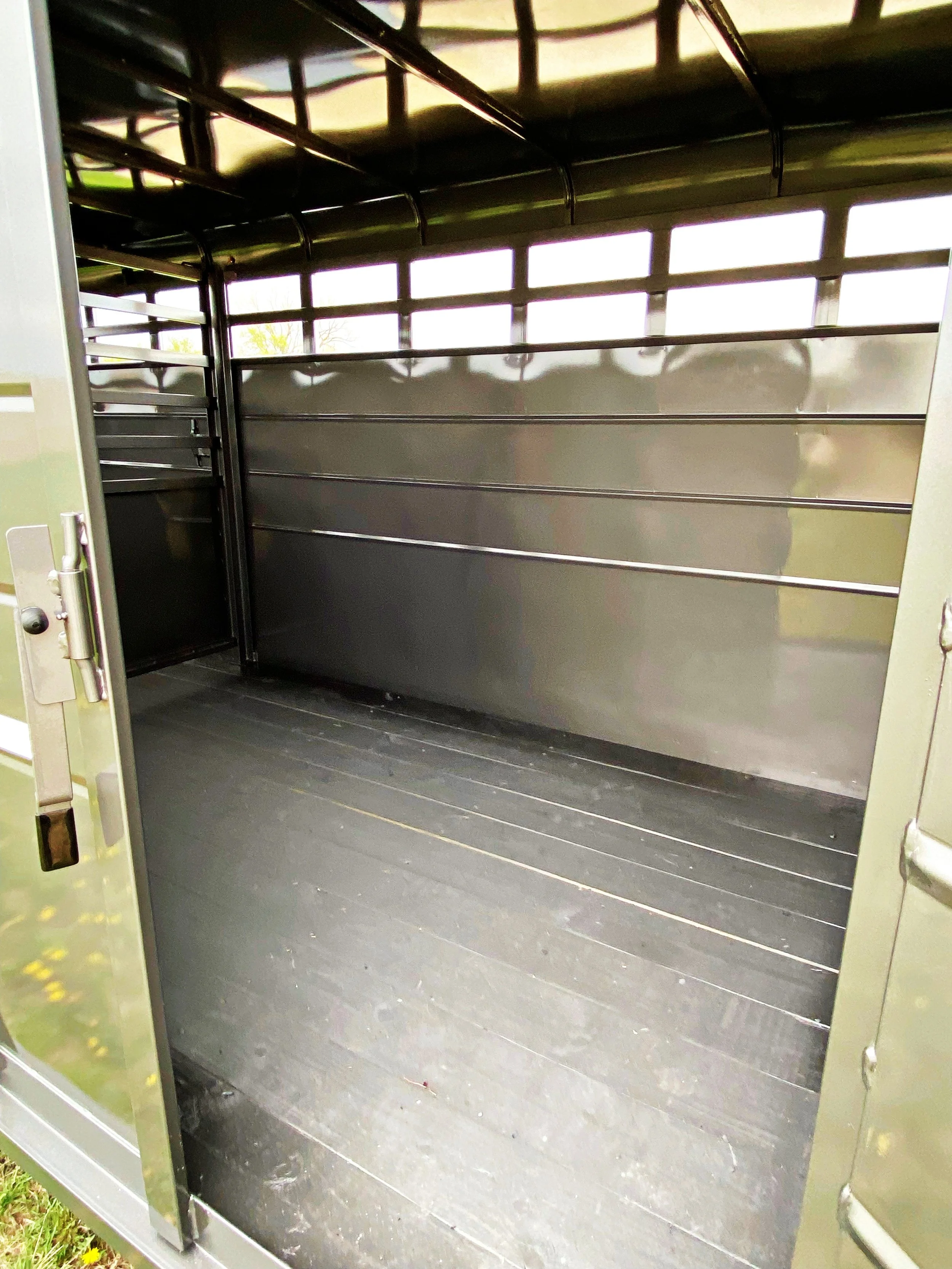

Floor: 2x8 Treated Wood Flooring

Sides: 16 Ga. Crimped Side Sheets

Side Uprights: 3x1 Tube, 14 Ga.

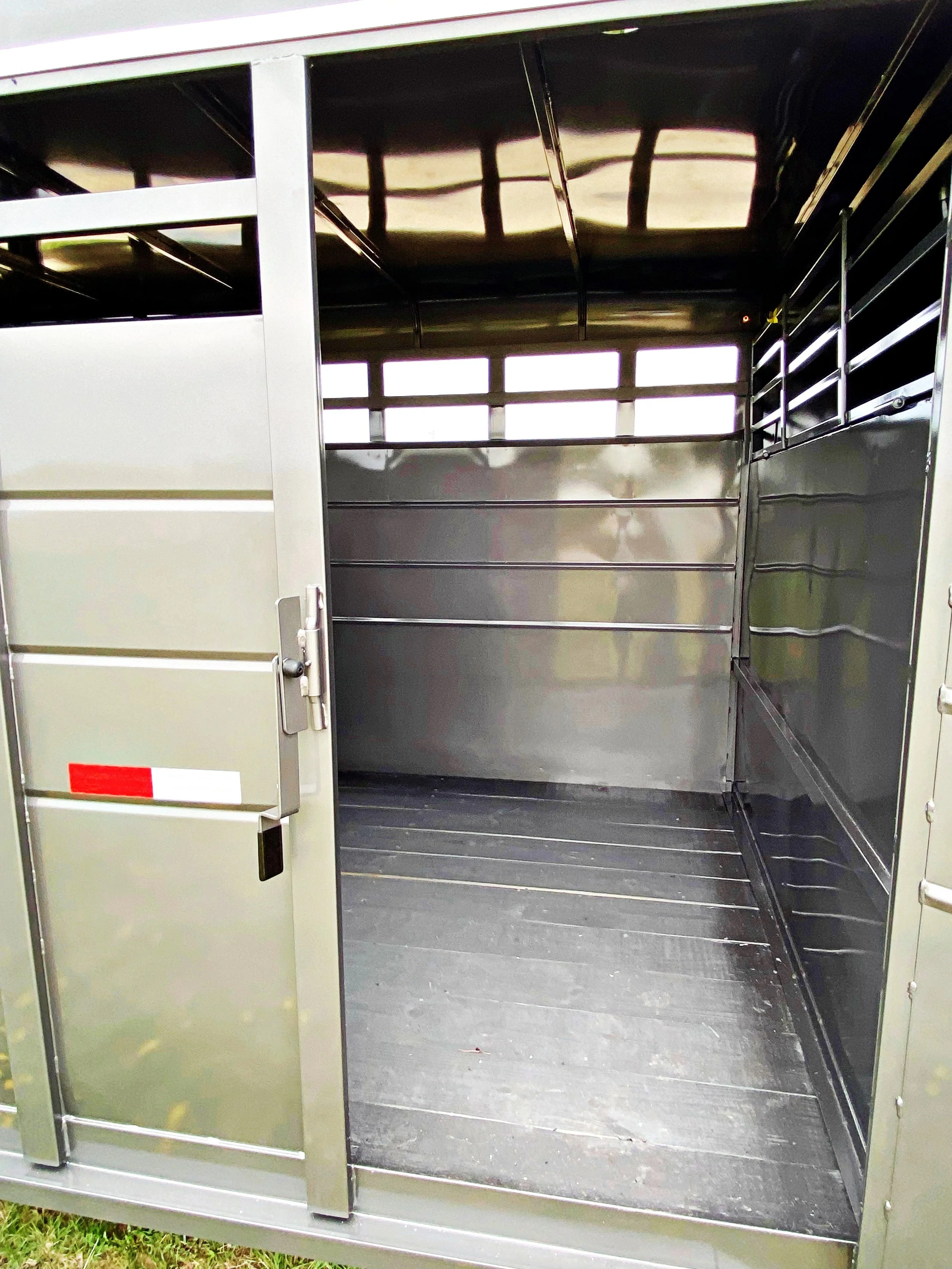

Side Door: 32” Standard Escape Door Style

Roof: Low Profile Design

Roof Radius: Approximately 6”

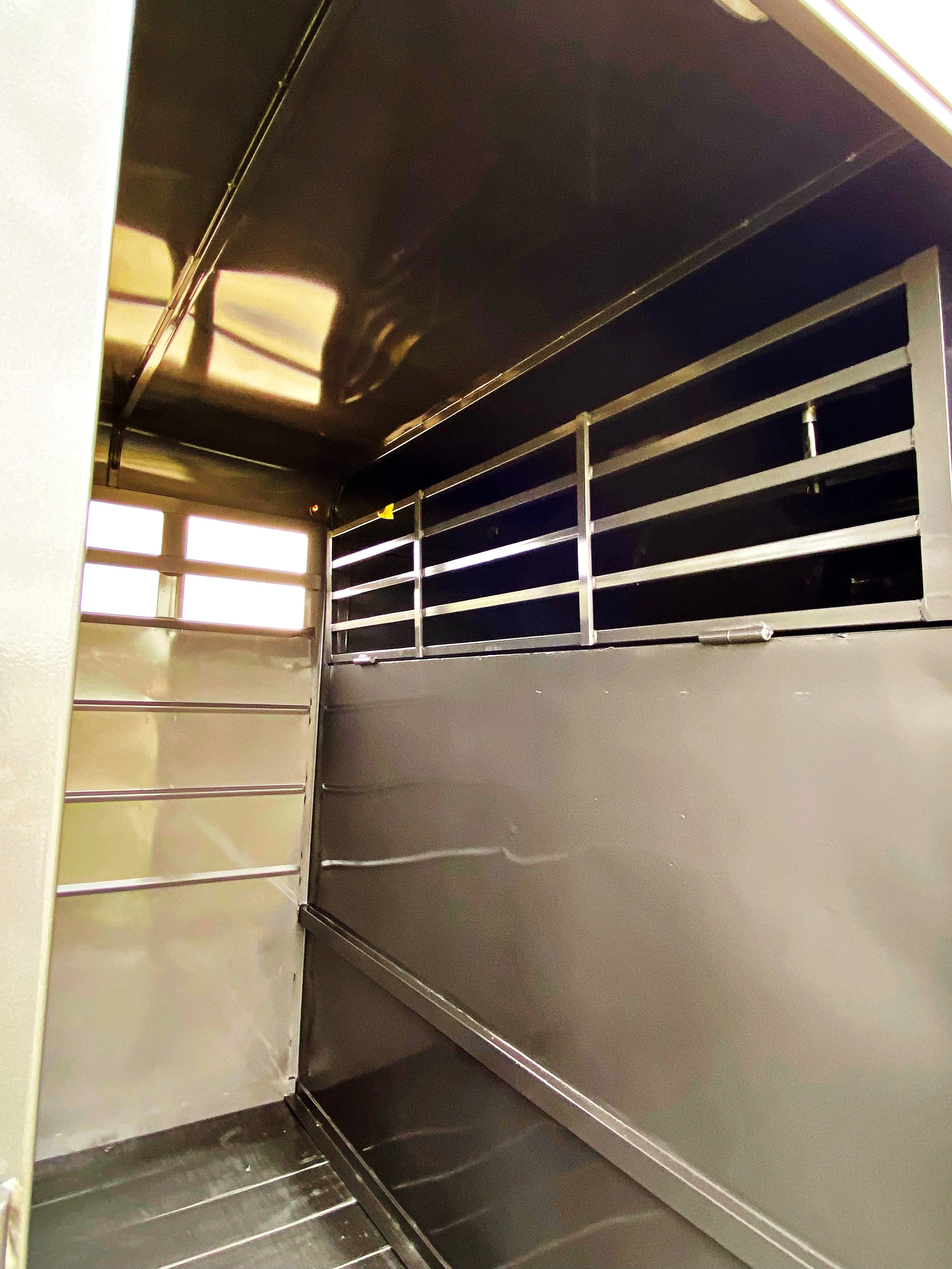

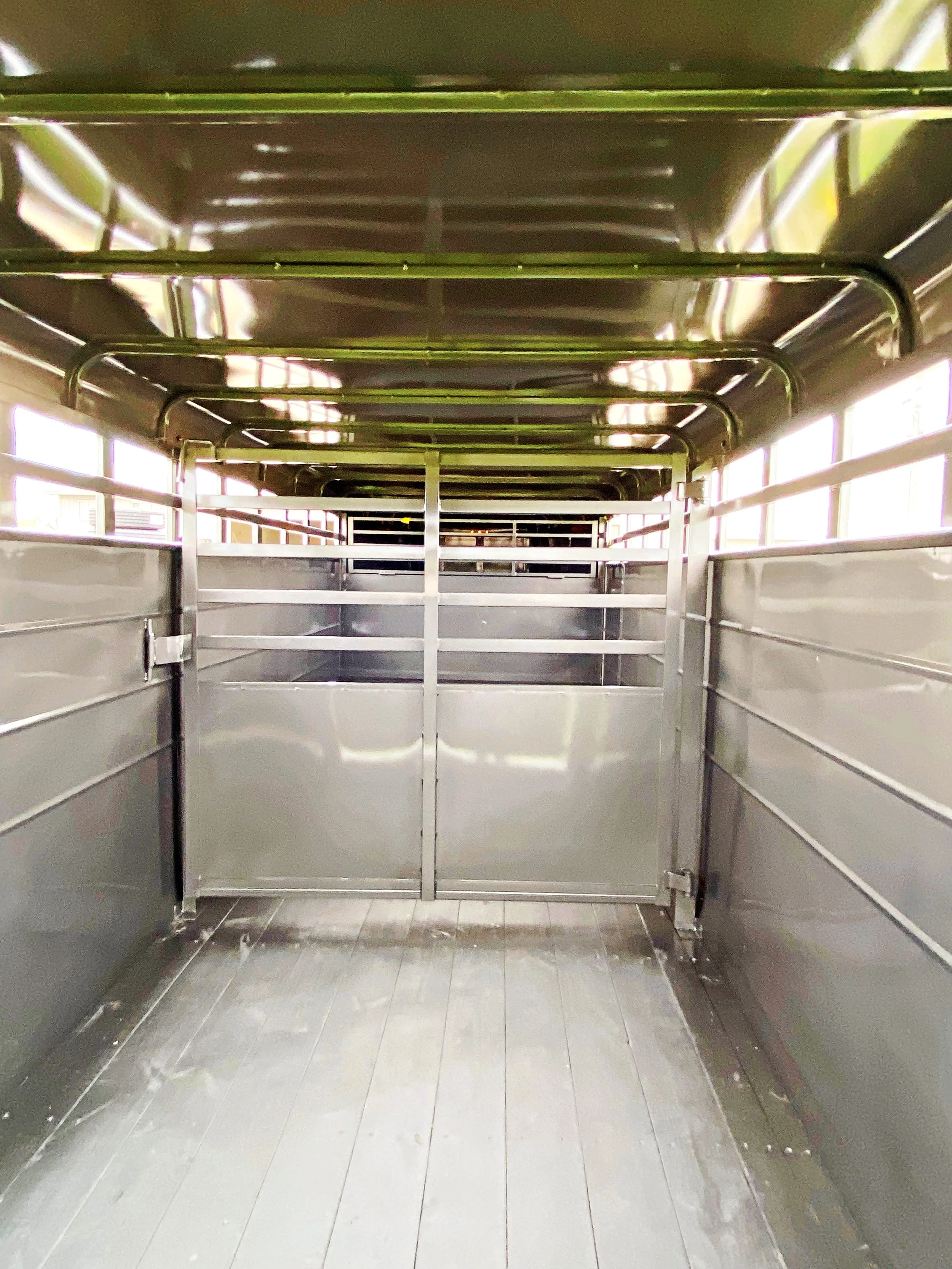

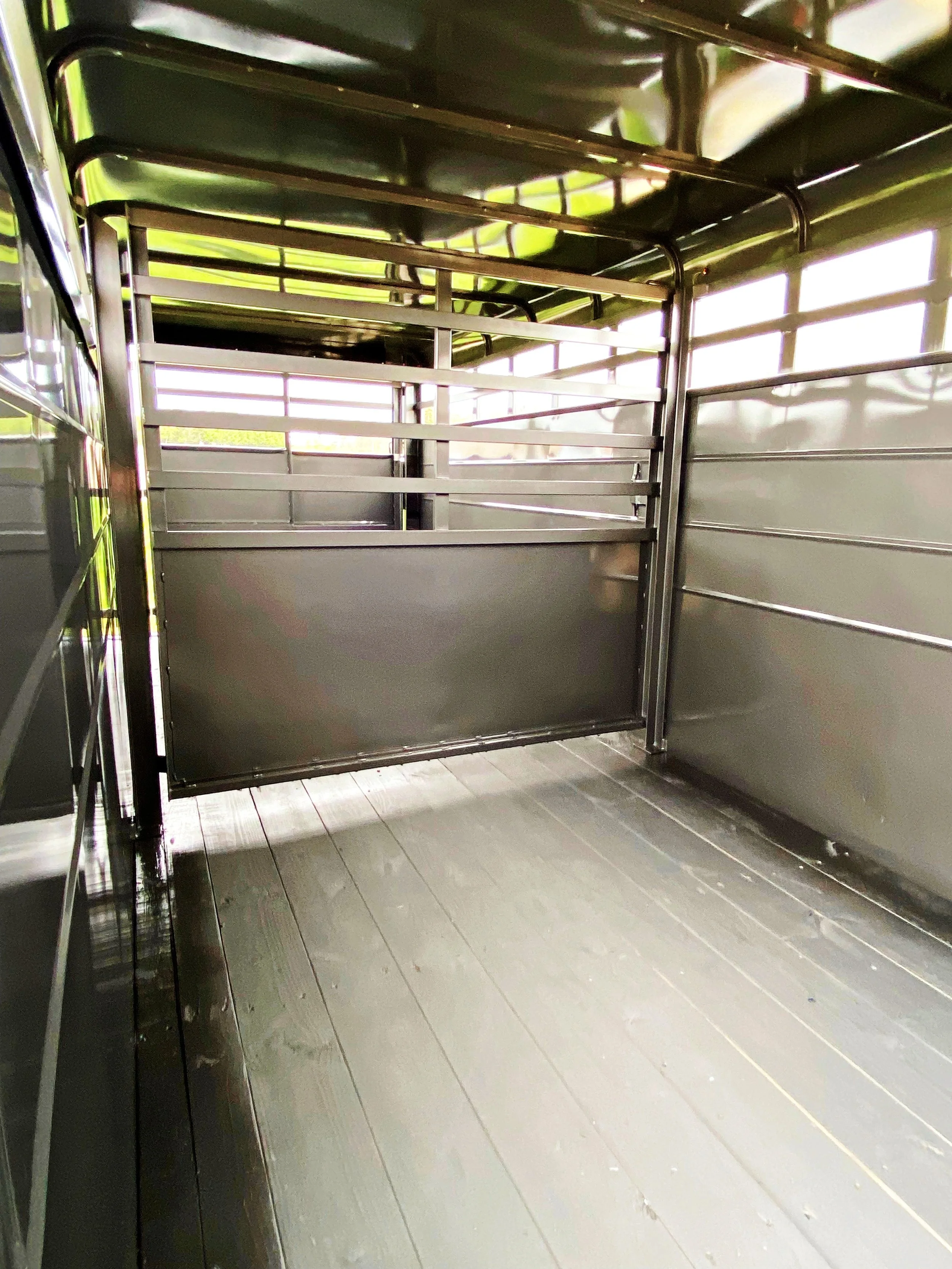

Centre Gate: Centre Swing Style, Slam Latch

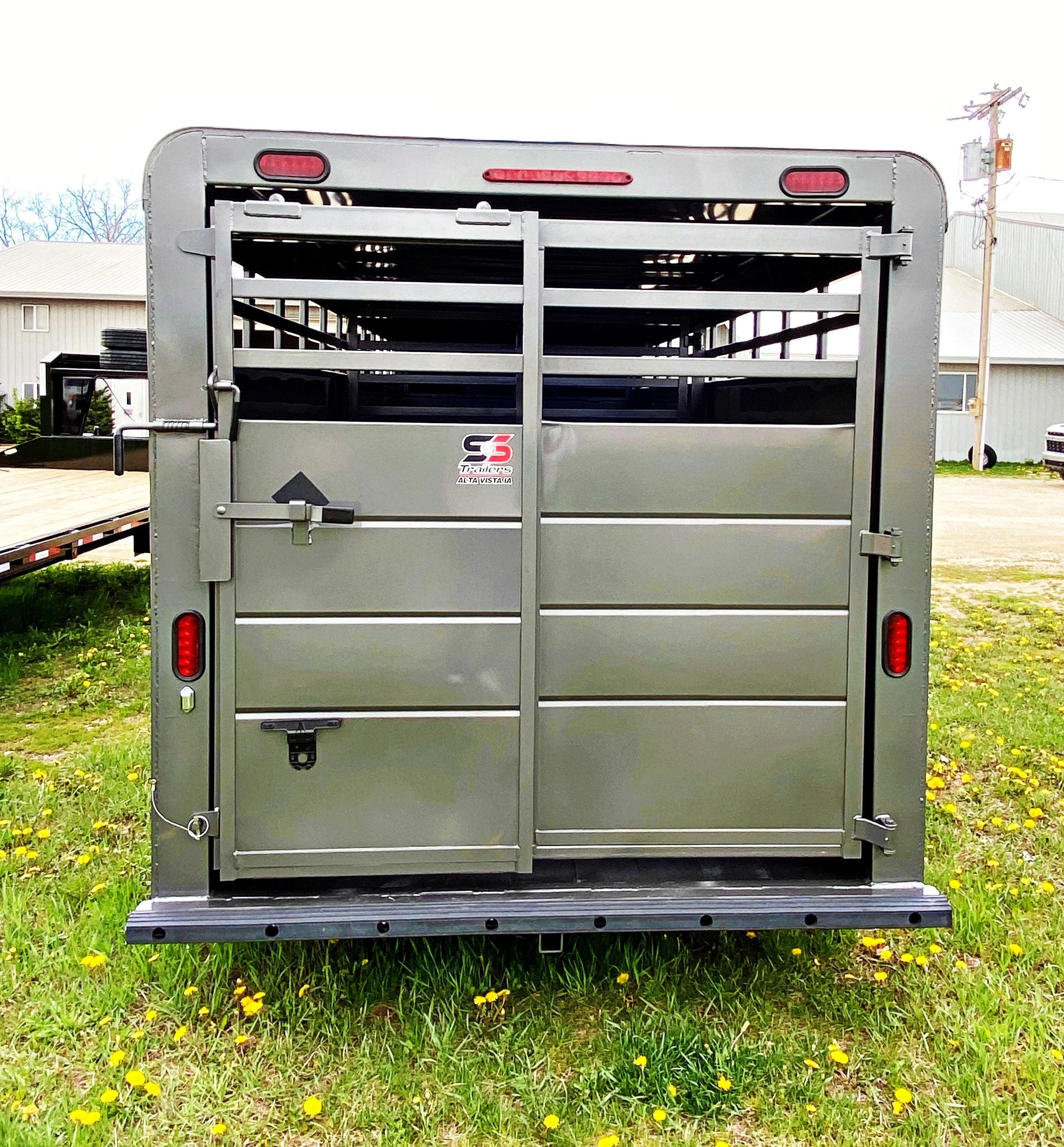

Rear Door: ½ Slide Style Gate, Slam Latch

Fenders: Tear Drop Fender Style

Wiring: 14 Ga. With in Conduit Junction

Electrical Plug: 7-way RV Plug Style

Interior Lights: LED

Exterior Lights: LED

Pre-Prep: De-Slag, Wire Brush Prep Step

Prep: 2 Step Acid Wash

Primer: PPG, Poly Urethane

Paint: PPG, Poly-Urethane

Deck Height: 16”

Gravel Guard: Aluminum Tread Plate Gravel Guard

Reflective Tape: Standard

Safety: Breakaway Kit and Safety Chains

***WARRANTY- S&S has a 6 year structural and frame warranty on livestock trailers.

OPTIONAL EQUIPMENT FOR GOOSE-NECKS:

-       6000 lb. Axles to 7,000 lb, Axles

-       Upgrade to 8,000 lb. Axles

-       Torsion Axle Upgrade

-       7’ Tall (Per Foot)

-       Bull Package 20’ Gooseneck

-       Bull Package 24’ Gooseneck

-       Rubber Bumper

-       Rubber Floor

-       Spare Wheel and Tire 16 In.

-       14 Ply Upgrade Over 10 Ply

-       Additional Length (Per Ft.)

-       Extra Centre Gate

-       ½ Slide in Centre Gate

-       Plexi Track (Per Foot)

-       Plexi Track Glass (Per Foot)

-       Lower Air Gaps

-       Floor Mats (Per Foot)

COLOUR CHOICES:

-       Gun Metal/ Charcoal

-       Burgundy

-       Arizona Beige

-       Silver

-       Red

-       Black

-       Blue

-       White (Extra Charge)

Located: Red Deer, AB

Financing Available OAC!

Asking: $27,495 + GST

Please reply to this ad, call or text: (403) 357-2725
